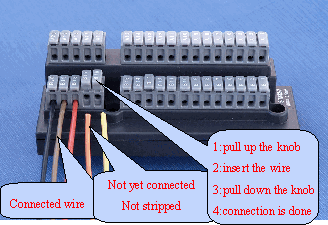

1. STRIPLESS TYPE TERMINAL BLOCKS

Construction configuration

Simply insert a untreated wire end into the hole.
By pressing down a knob which contains knife edge terminal by itself, stable connection is realized.

Applicable wires：　Twisted wires
Applicable wire diameter：#18〜#24
　　　　　　　　（Specified）

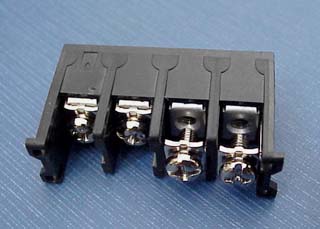

2. SELF UP TYPE TERMINAL BLOCKS

Designed with holders which prevent folling down of screws. (Photo: Completely loosen screws will not falling down.)

Screw diameter：　M3　M4
Terminal steps：　Applicable to various numbers

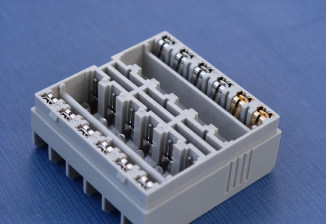

　3. CARD EDGE TYPE TERMINAL BLOCKS

Insertion port for circuit board are provided at the back of terminal blocks, and high reliability are assured by specially formed contacts.

Plating for contact：Gold plating, and other various kind of plating.
Number of terminals：Applicable to various numbers

　４. TWO PIECE TYPE TERMINAL BLOCKS

This unique 2 pieces construction enables user to perform manufacturing work separately;
You can mount the lower portion onto the set beforehand, and made possible to connect wires into the upper portion by different manufacturing process.
Ease of manufacturing process is encountered by Emuden's technology.

Plating of contact：Applicable to various demand.
Number of terminals：Applicable to any numbers.
